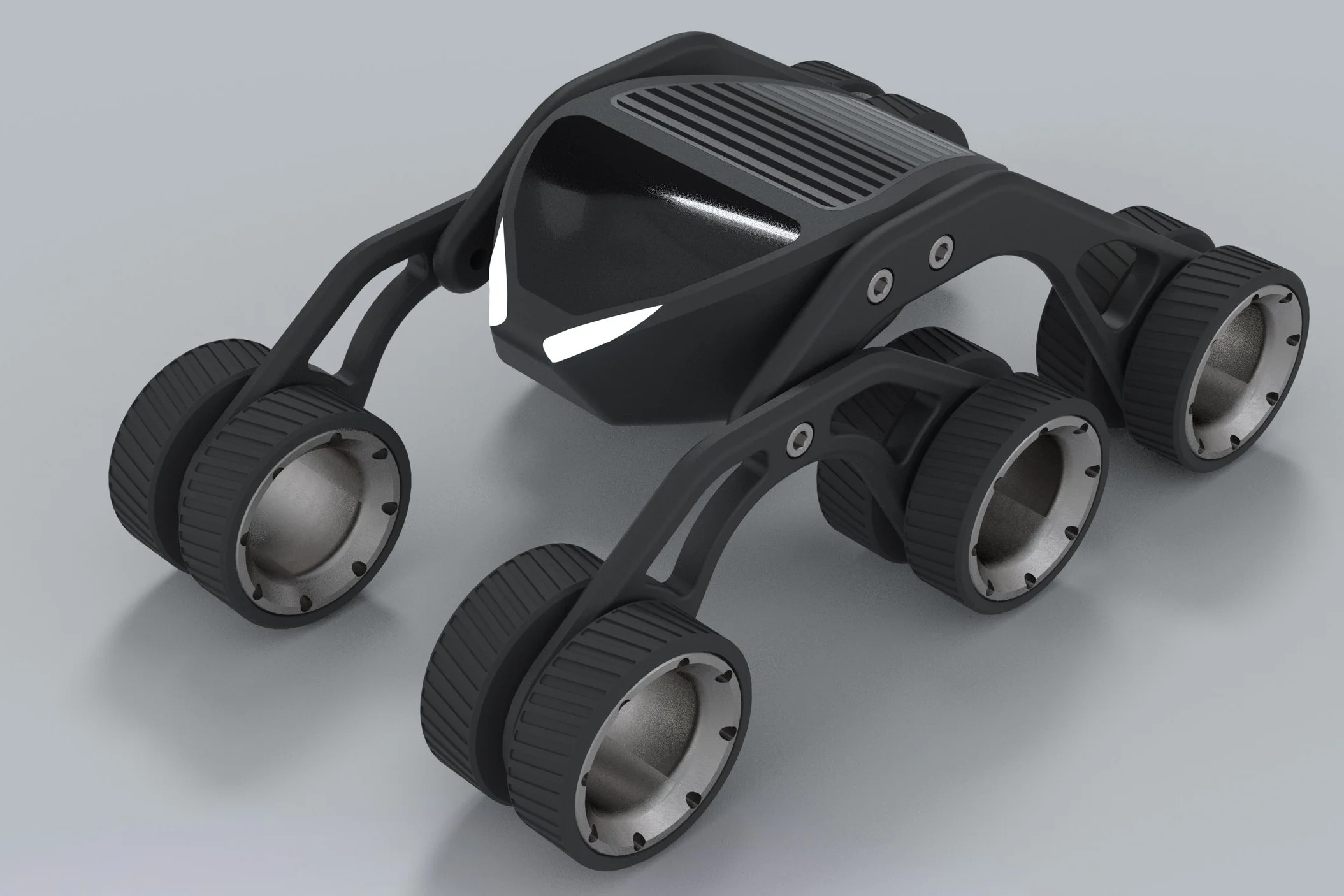

MARTIAN ROVER

TThe rocker-bogie system is the suspension arrangement used in the Mars rovers (mechanical robot) introduced for the Mars Pathfinder and also used on the Mars Exploration Rover (MER) and Mars Science Laboratory (MSL) missions. It is currently NASA's favored design

Feature 1

The rocker-bogie design has no springs or stub axles for each wheel, allowing the rover to climb over obstacles, such as rocks, that are up to twice the wheel's diameter in size while keeping all six wheels on the ground.

Feature 2

The system is designed to be used at slow speed of around 10 centimetres per second (3.9 in/s) so as to minimize dynamic shocks and consequential damage to the vehicle when surmounting sizable obstacles.

Feature 3

T rocker bogie system reduces the motion of the main MER vehicle body by half compared to other suspension systems. Each of the rover's six wheels has an independent motor. The two front and two rear wheels have individual steering motors which allow the vehicle to turn in place. Each wheel also has cleats, providing grip for climbing in soft sand and scrambling over rocks. The maximum speed of the robots operated in this way is limited to eliminate as many dynamic effects as possible so that the motors can be geared down, thus enabling each wheel to individually lift a large portion of the entire vehicle's mass.
